DRAKON Language Syntax

This document describes the main DRAKON language constructs used for programming in DrakonTech.

Hello, World

Here is the canonical "Hello, World" algorithm represented in DRAKON.

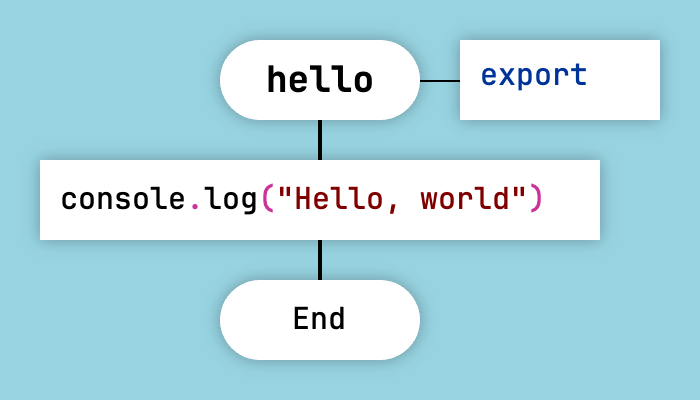

Hello, World in DRAKON

Procedure calls and assignments are placed inside Action icons. The Action icon has the shape of a rectangle.

Function Arguments

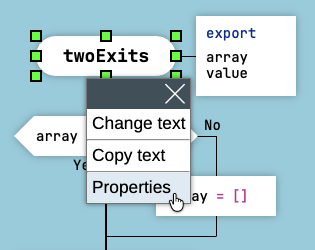

To add arguments to a function, right-click on the diagram header and choose "Properties" from the context menu.

Then add one argument per line, without commas.

You can also set function flags such as export and async in the "Properties" dialog.

Function Arguments

The function arguments and flags will be displayed in the "Formal Parameters" icon on the right side of the diagram header.

Question

The Question icon is the DRAKON equivalent of the if-else construct.

The "Question" Icon

Follow the rule: "the farther to the right, the worse."

• The happy path should go down the skewer (the main vertical line).
• Less successful scenarios should branch to the right.
• Error handling should definitely go to the right.
• If both scenarios are equally successful, the most expected and most frequent one should go down the skewer. The less frequent one should go to the right.

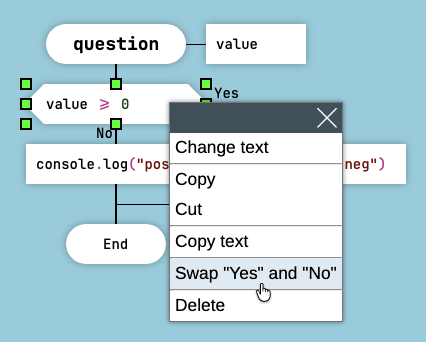

Note that the Yes and No exits can be swapped. To do that, right-click on a Question icon and choose "Swap Yes and No" from the context menu.

Swap Yes and No

Since the exits can be swapped, the NOT logical operator and the NOT EQUAL (!=) operator are redundant in DRAKON.

Do not use NOT and NOT EQUAL operators when programming in DRAKON because they add unnecessary complexity.

Visual Logical Formulas

DRAKON does not encourage the use of logical AND and OR operators. They quickly get out of control, especially when the number of operands exceeds two.

Instead, visual logical formulas should be used.

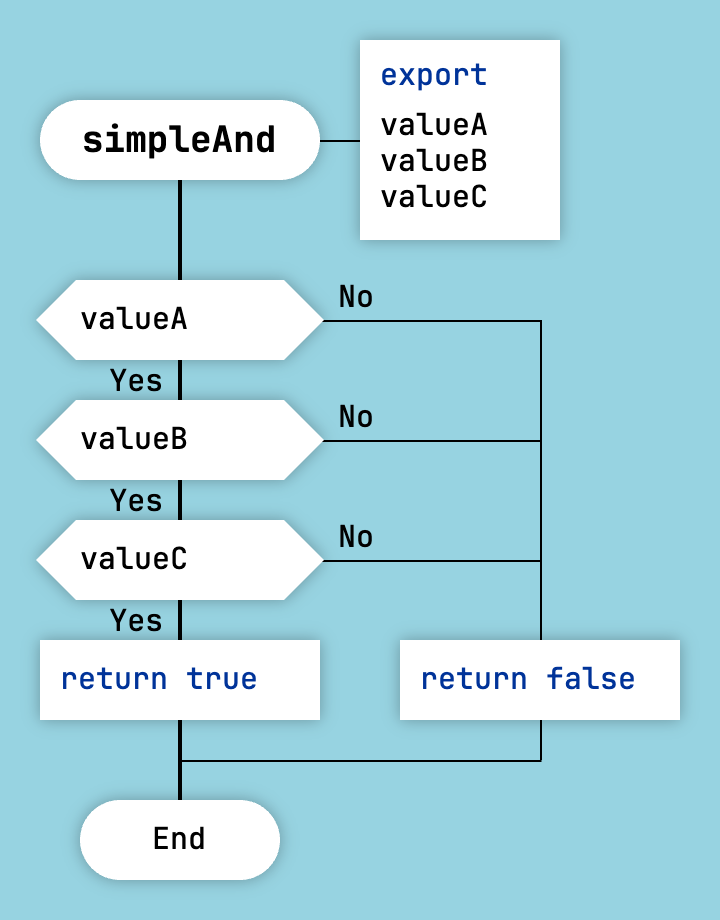

Here is the visual formula for the AND operator.

Visual Formula for AND

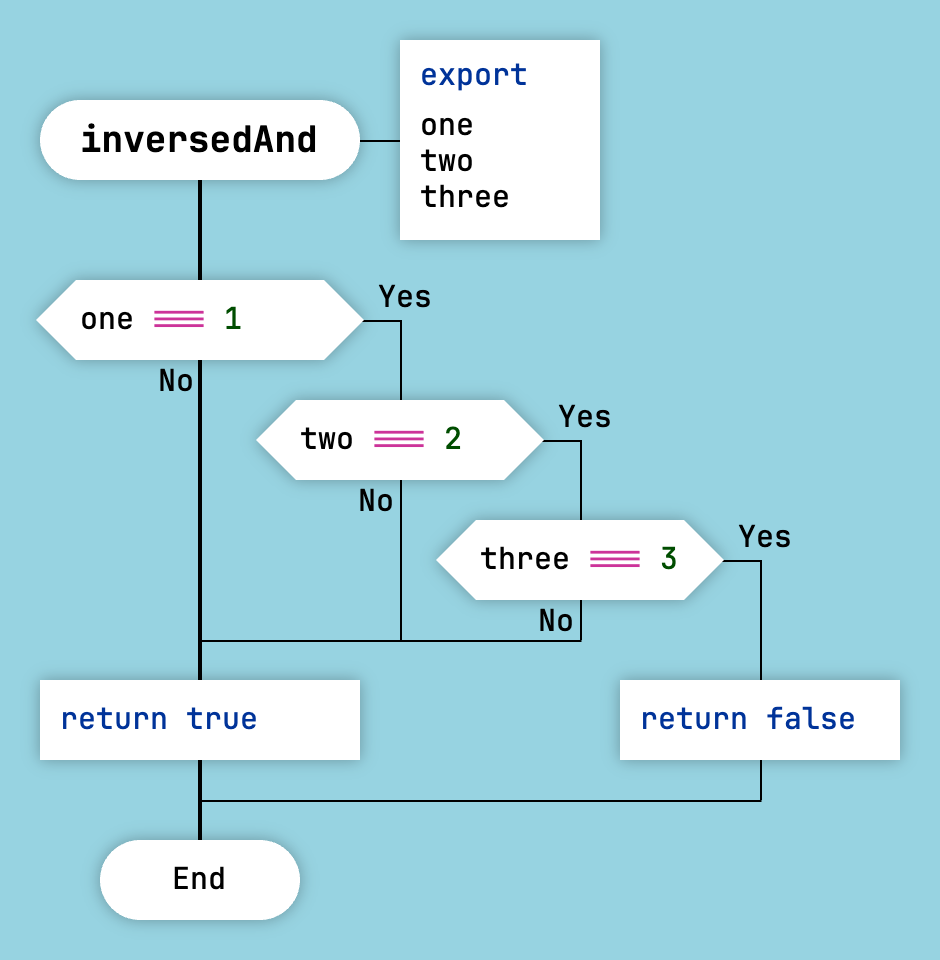

Here is the inverted formula for the AND operator.

Inverted Formula for AND

The OR operator can be transformed into visual logical formulas in a similar way.

Here is the visual formula for the OR operator.

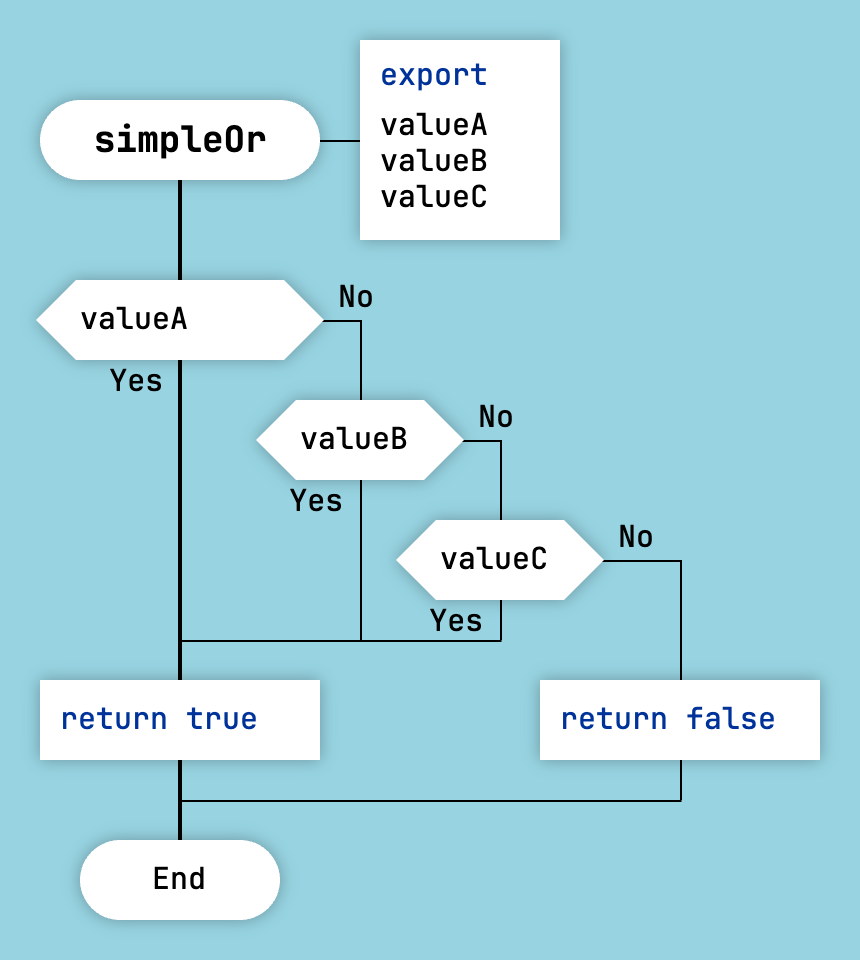

Visual Formula for OR

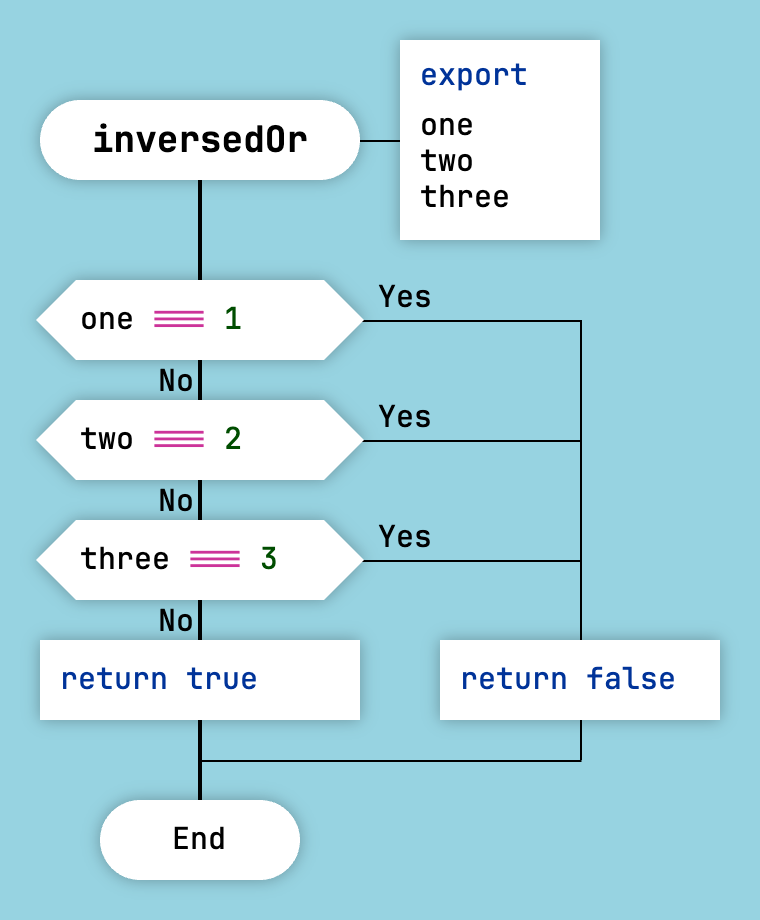

Here is the inverted formula for the OR operator.

Inverted Formula for OR

As with simple conditions, there is no need to use the NOT and NOT EQUAL operators here.

Select

The Select icon is the DRAKON equivalent of the switch-case construct.

The Case icons contain the case values.

To add a default case, add an empty Case icon on the right.

The "Select" Icon

Whenever possible, it is recommended to arrange case values in ascending or descending order.

Foreach Loop

The Foreach Loop icon is the DRAKON equivalent of for and foreach loops.

The format of the Foreach Loop icon differs slightly depending on the target language.

In DRAKON-JavaScript, there are three ways to specify a Foreach Loop.

1. Iteration over an array. The construct for (var item of array) { ... } is written in the loop icon as item; array.
2. Iteration over an object. The construct for (var key in map) { var item = map[key]; ... } is written as key, item; map.
3. A for-style loop. The construct for (var i = 0; i < count; i++) { ... } is written as i = 0; i < count; i++.

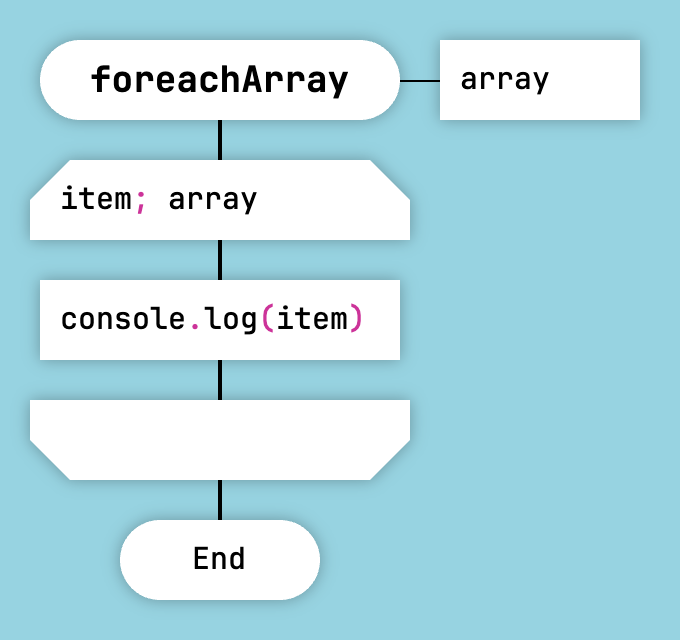

Array Iteration in JavaScript and Lua

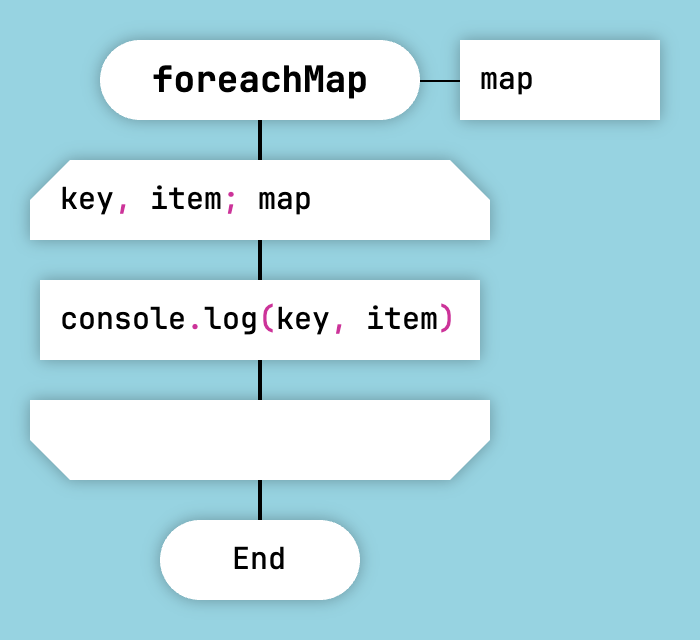

Object Iteration in JavaScript and Lua

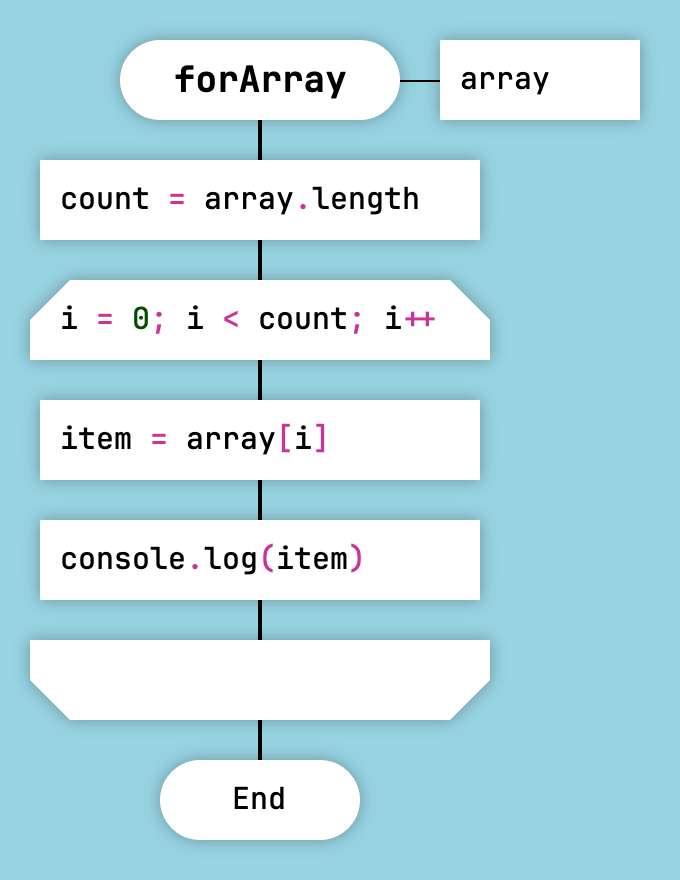

For-Style Loop in JavaScript and Lua

The Lua generator works similarly to the JavaScript generator:

1. Iteration over an array. The construct for _, item in ipairs(array) do ... end is written in the loop icon as item; array.
2. Iteration over an object. The construct for key, item in pairs(map) do ... end is written as key, item; map.
3. A for-style loop. The construct i = 0; i < count; i = i + 1 works the same way as in JavaScript.

An important difference is that for Lua, the generator does not add pairs() or ipairs() in certain cases:

1. When the collection is a function call, for example: x, y; fun.iter(some_object).
2. When the collection is an iterator expression, for example: i, code; utf8.next, text.

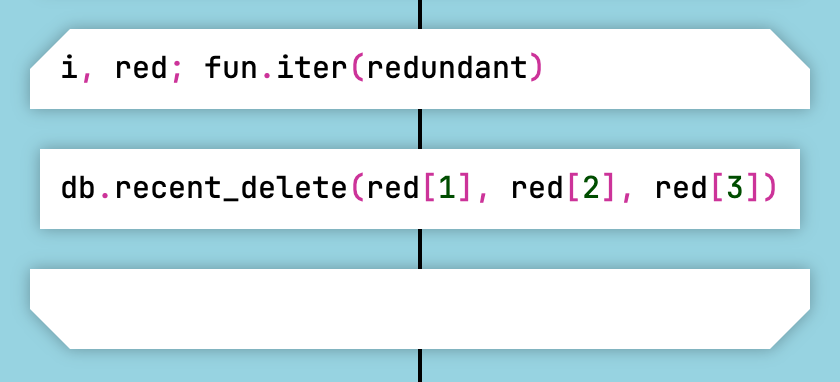

Looping Over a Value Returned by a Function in Lua

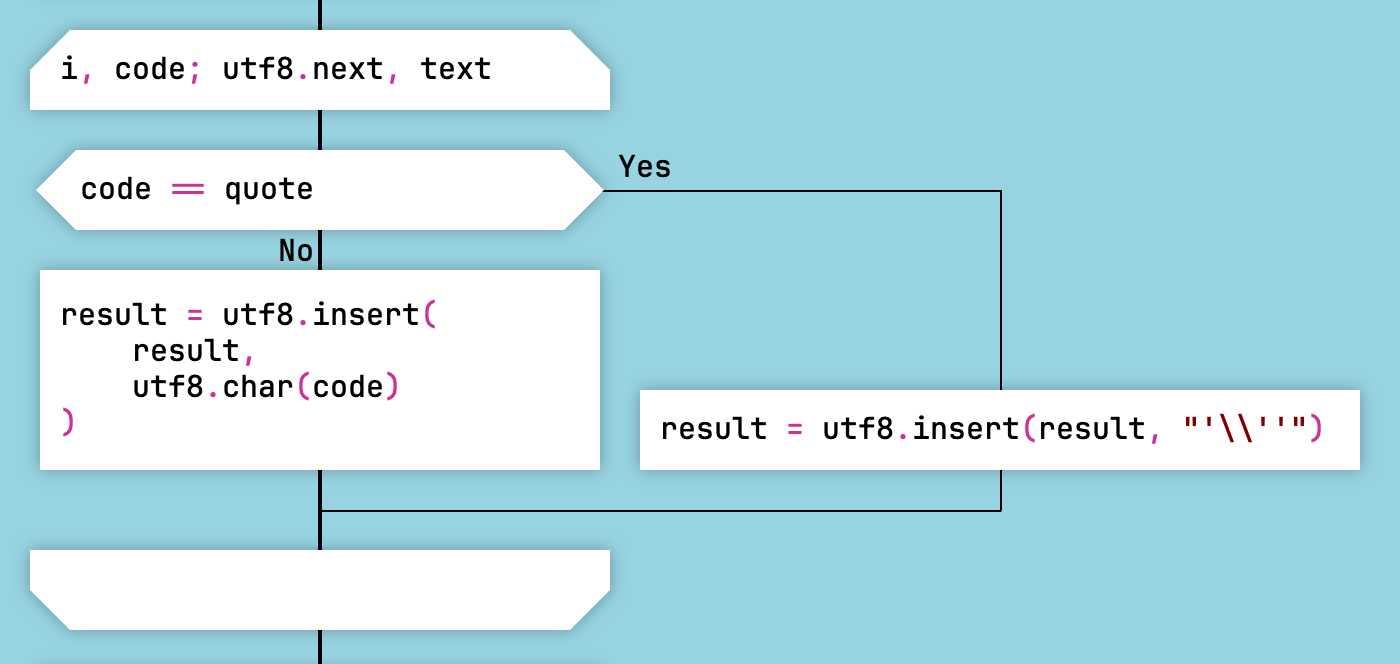

Iterator Loop in Lua

The Foreach Loop is not supported by the Clojure generator.

It is possible to exit a Foreach Loop early using a Question icon.

Note that the exit can only be directed to the point immediately after the loop.

This will not work:

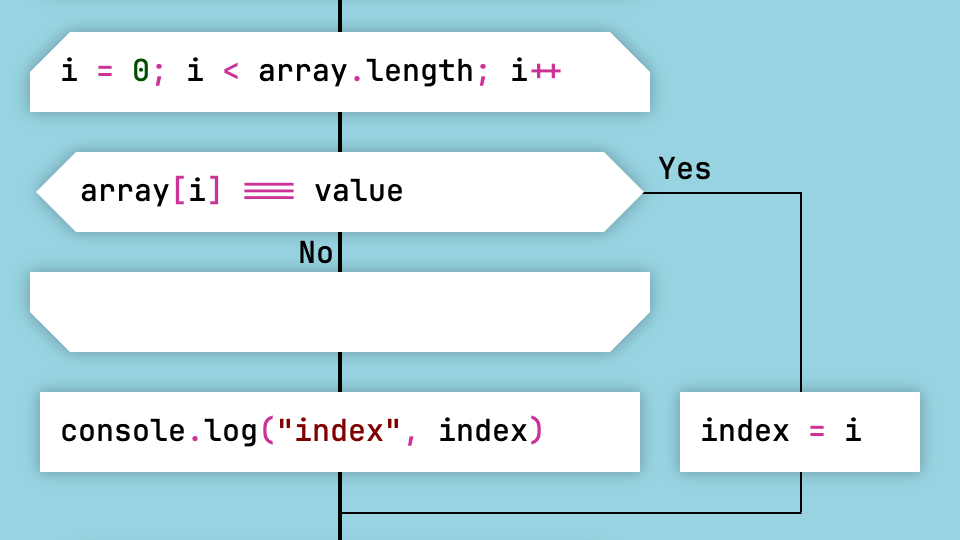

Early Loop Exit That Causes an Error

This is the correct way to exit:

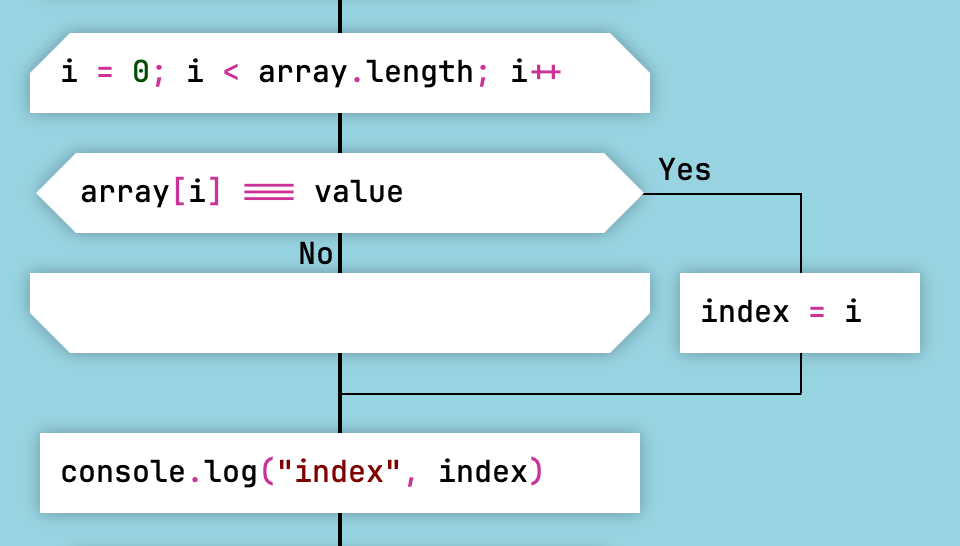

Correct Early Loop Exit

It is also acceptable to terminate the function with a return statement. In that case, there is no need to direct the exit outside the loop construct.

However, do not use the break keyword, because the code generator does not support it.

Arrow Loop

DRAKON replaces arrows in flowcharts with ordinary lines.

There is, however, one case where DRAKON uses an arrow: the Arrow Loop.

This makes loops instantly visible on a diagram.

If there is an arrow, there is a loop.

The Arrow Loop is the DRAKON equivalent of the while and do-while constructs.

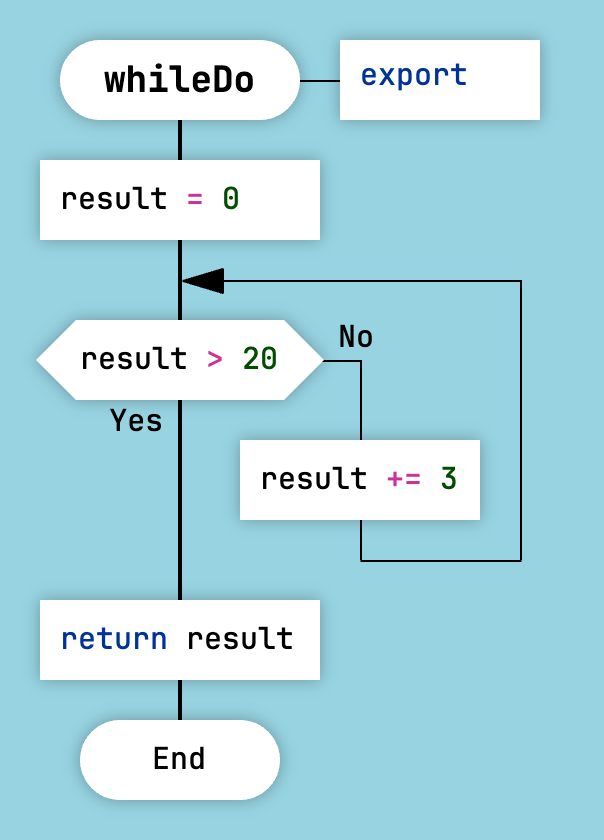

Here is how a while construct looks in DRAKON. First, the loop condition is checked. Then the loop body follows.

While Loop in DRAKON

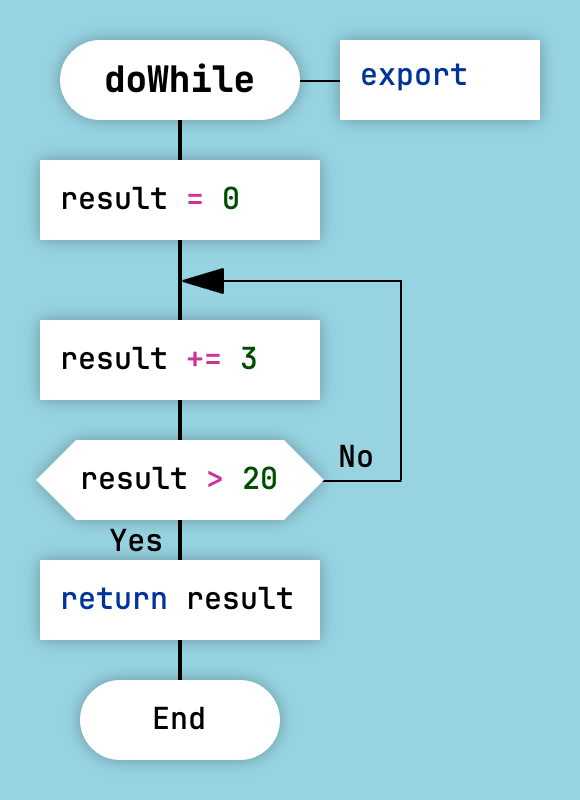

Here is how a do-while construct looks in DRAKON. First, the loop body is executed. Then the loop condition is checked.

Do-While Loop in DRAKON

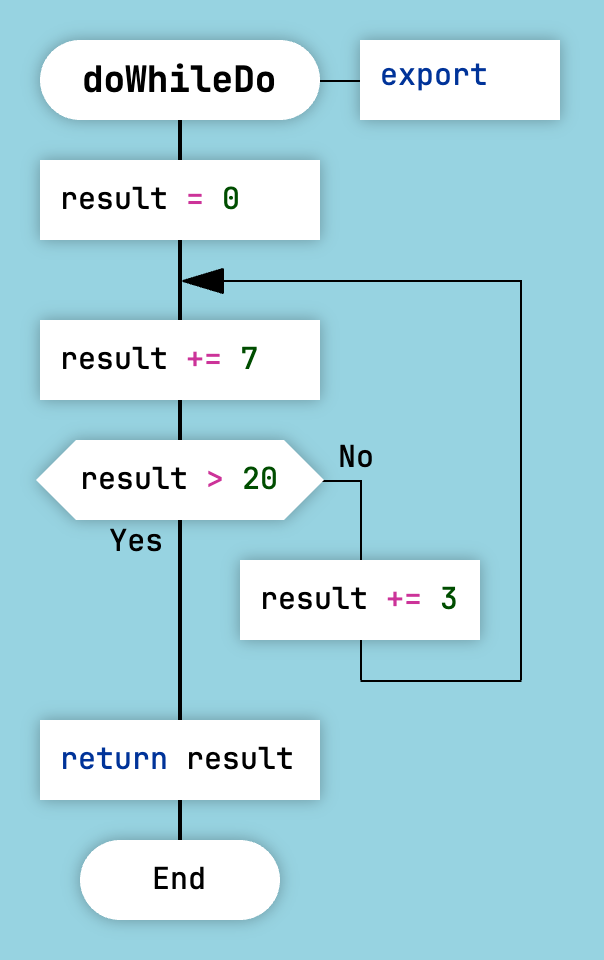

In this example, the loop implements the action-check-action pattern:

Do-While-Do Loop in DRAKON

The Arrow Loop is not supported by the Clojure generator.

Silhouette

There are two types of DRAKON diagrams: primitives and silhouettes.

A silhouette consists of several branches. A silhouette divides a complex algorithm into logical parts without decomposition.

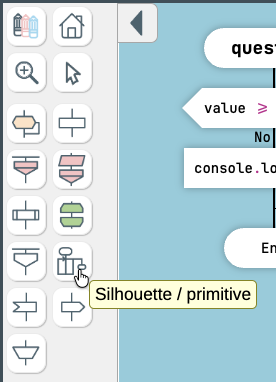

To convert a primitive into a silhouette and back, click the "Silhouette/Primitive" button on the toolbar.

How to Create a Silhouette in DrakonTech

Decomposition is a useful technique, but it comes at a cost. Very often, it is better to use a silhouette instead of decomposition. The key advantage of a silhouette is that it does not require excessive passing of function arguments and return values. At the same time, the entire algorithm remains on a single diagram.

The silhouette branches are the chapters of your function. Therefore, it is important to give them meaningful names. Good branch names help explain the algorithm.

The first silhouette branch is on the left. The last branch is on the right. Between these boundaries, branches may follow in any order. However, arranging them from left to right is considered good practice.

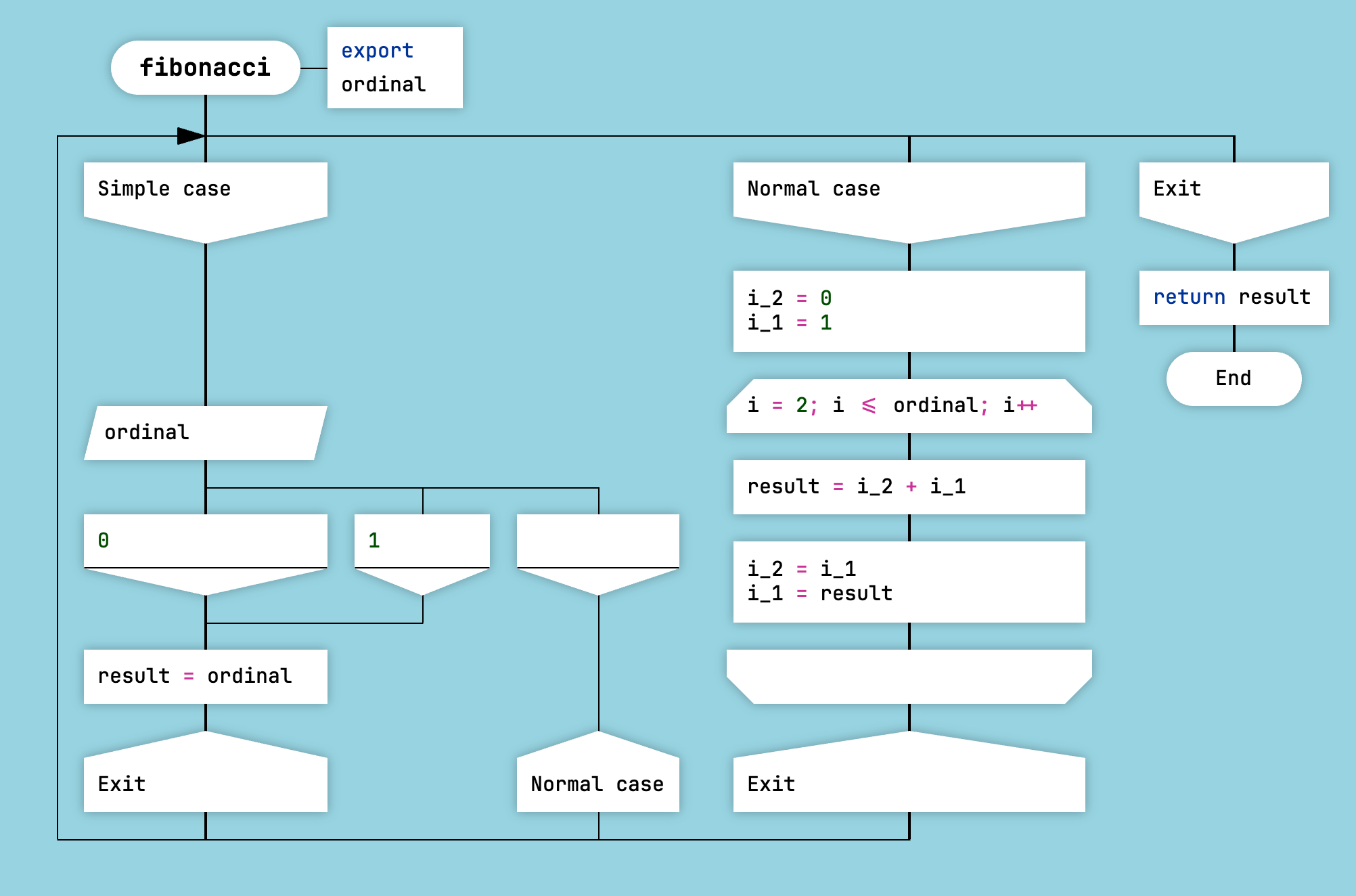

Silhouette DRAKON Diagram

Use Address icons to control which branch will execute next.

A single silhouette branch may contain several Address icons.

Silhouette Loop

One or more branches can be executed repeatedly. This is called a silhouette loop.

To create a silhouette loop, direct a transition from an Address icon to the same branch that contains the loop body.

Do not forget to add an exit condition. Otherwise, you will end up with an infinite loop.

DrakonTech marks the branch headers and the Address icons involved in the loop with special loop markers.

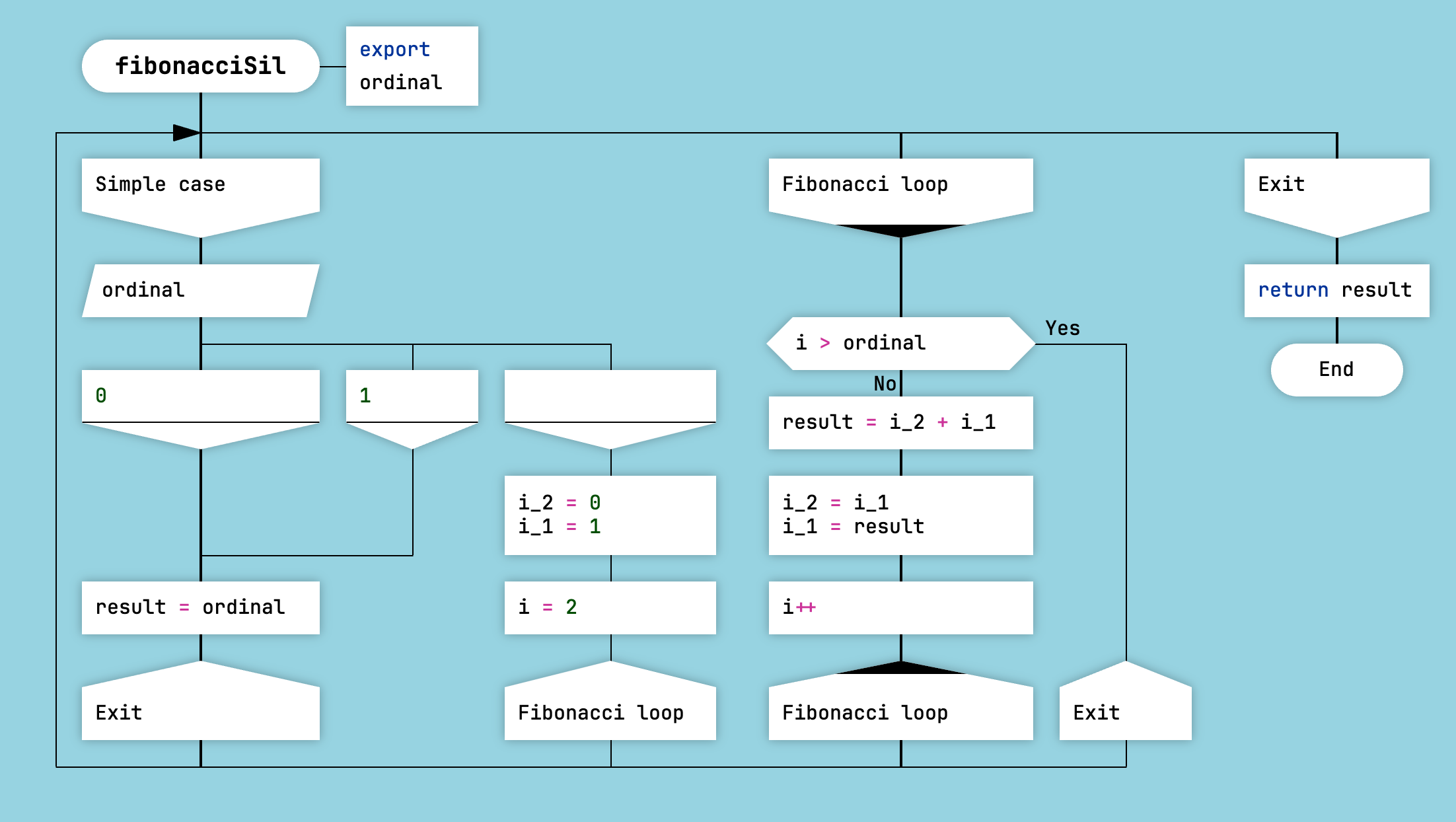

Silhouette Loop

This is another technique DRAKON uses to make loops immediately stand out.

Catch Branch

For JavaScript, DrakonTech supports a special branch with the reserved name catch. A catch branch generates an exception handler of the form catch (ex) { ... }.

To access the caught exception object, call the getHandlerData() function.

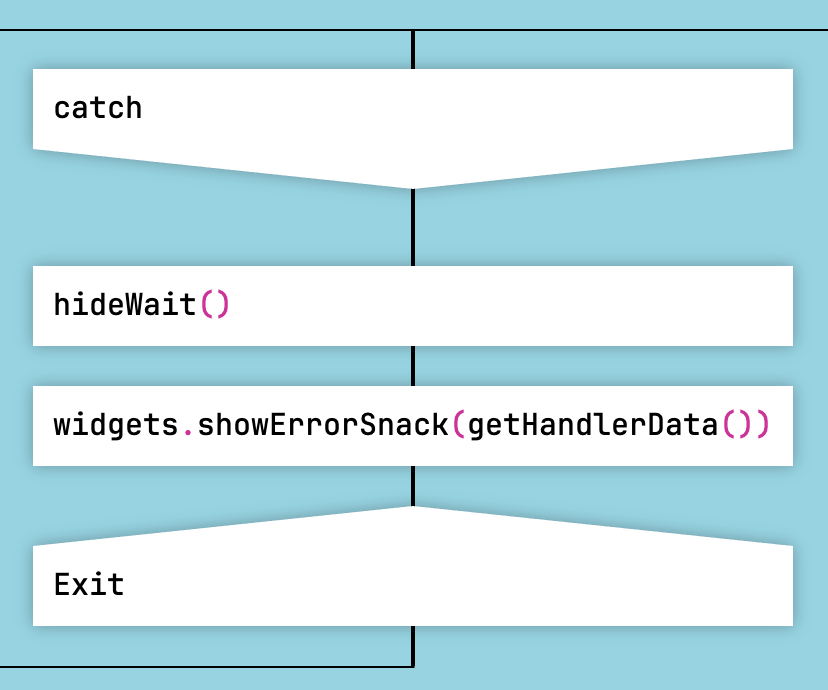

Catch Branch

Other branches are not allowed to reference the catch branch.
